Performance
Useful features
Interior
Safety
Body Application
Specification

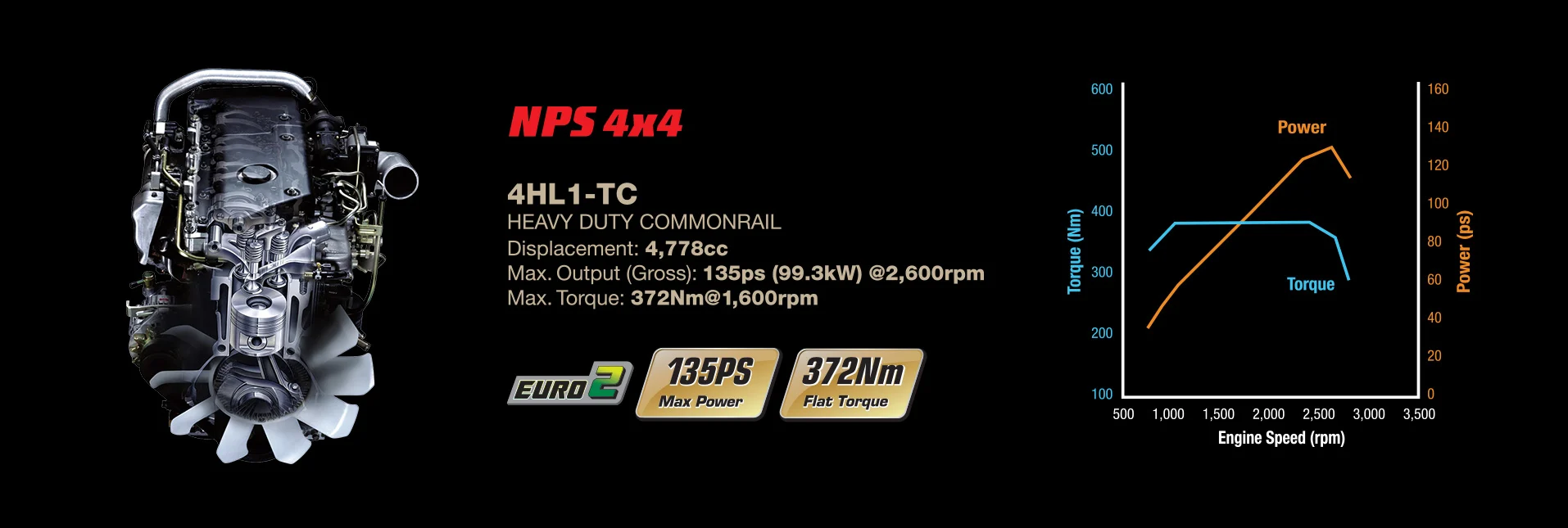

Performance
Front free wheel hub
Wider approach and departure angles One piece straight chassis
Higher ground clearance
Useful features

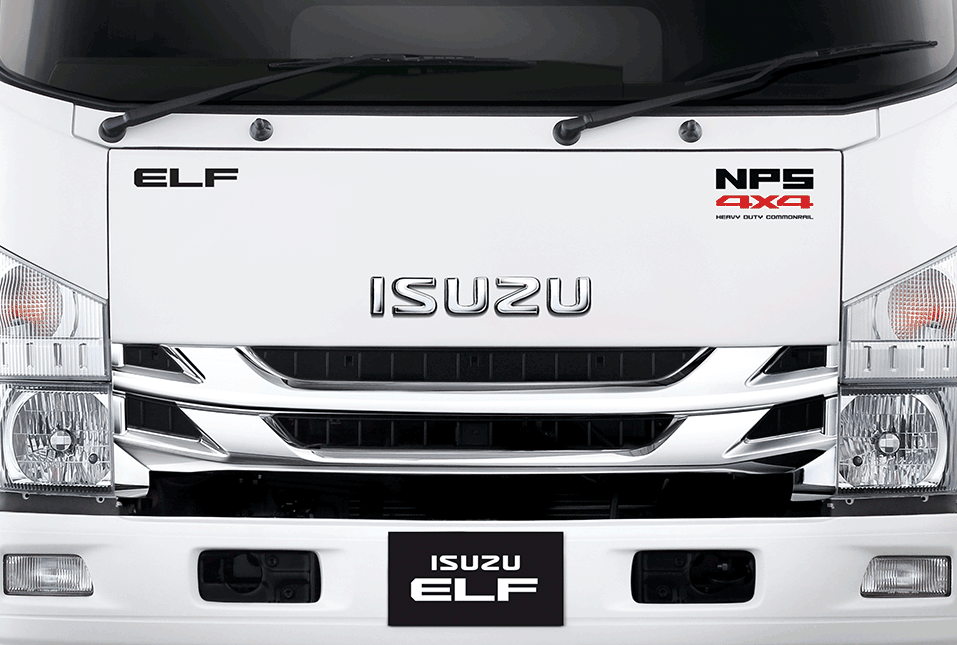

New chrome fang grille
90 Degrees door opening
Bigger axle capacity
Door visor
Off-road tyre with wheel cap
Interior
Ergonomic instrument panel design with ample storage compartments
Audio and air-cond units
Spacious and comfortable cabin
4×4 Switch
Safety
Energy absorbing steering wheel and column
Headlight leveling
Rear fog lamp and reverse sensor
Door impact beam with high tensile strength reinforcement frame
Load Sensing Proportioning Valve (LSPV)

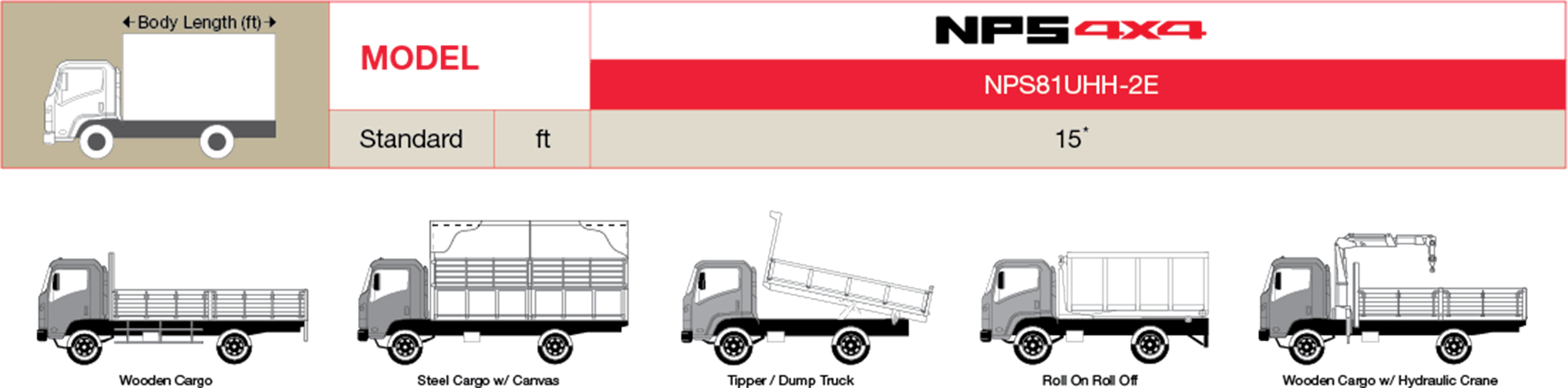

Body Application
Specification
 |
|||||
|---|---|---|---|---|---|
| MODEL CODE | NPS81UHH-2E | ||||
| e-Brochure | |||||
| Drive System | 4×4 | ||||
| ENGINE | |||||
| Model | 4HL1-TC | ||||
| Type | 4-Cylinder In-line, 4-Cycle, Water-Cooled OHC, Turbo with Intercooler | ||||
| Displacement | cc | 4,778 | |||
| Bore x Stroke | mm | 115 x 115 | |||
| Maximum Output (Gross) | kW (PS) @ rpm | 99.3 (135)@2,600 | |||
| Maximum Torque | Nm (kgfm) @ rpm | 372 (38)@1,600 | |||
| Emission Level | Euro 3 | ||||
| Fuel System | Common Rail Direct Injection | ||||
| TRANSMISSION | |||||
| Model / No. of Speed | MYY-5T / 5-Speed Manual | ||||
| Gear Ratio | 1st | 5.315 | |||
| 2nd | 3.053 | ||||
| 3rd | 1.655 | ||||
| 4th | 1.000 | ||||
| 5th | 0.721 | ||||
| Reverse | 5.068 | ||||
| Final | 5.571 | ||||
| WEIGHT & CAPACITIES | |||||
| Gross Vehicle Weight | kg | 5,000 | |||
| Curb Weight | kg | 2,875 | |||
| Front | kg | 1,905 | |||
| Rear | kg | 970 | |||
| Fuel Tank Capacity | l | 100 | |||
| AXLE | |||||
| Front | Type | Single Banjo, Full Floating with Manual Lock Hub | |||
| Front Axle Capacity (Design) | kg | 2,800 | |||
| Rear | Type | Single Banjo, Full Floating | |||
| Rear Axle Capacity (Design) | kg | 6,600 | |||
| SUSPENSION SYSTEM | |||||
| Suspension | Front | Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber, Stabiliser Bar | |||
| Rear | Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber | ||||
| TYRES & WHEELS | |||||
| Tyres | 8.5R17.5 | ||||
| Wheels | 17.5 x 6.00-127 | ||||
| BRAKES | |||||
| Service | Drum Brakes with Dual Circuit Hydraulic Control, Vacuum Assistance and Load Sensing Proportioning Valve (LSPV) | ||||
| Parking Brake Type | Transmission Mounted, Mechanical Operated Internal Expanding | ||||
| Auxiliary | Exhaust Brake | ||||
| STEERING | |||||
| Steering System | Power Assist, Recirculating Ball Type | ||||
| Min. Turning Radius | m | 6.6 | |||
| ELECTRICAL | |||||
| Battery | 12V x 2 | ||||
| Alternator | 24V – 80A | ||||
| DIMENSION | |||||
| Overall Length | OAL mm | 5,985 | |||
| Overall Width | OAW mm | 2,125 | |||
| Overall Height | OAH mm | 2,450 | |||
| Wheelbase | WB mm | 3,395 | |||
| Front Overhang | FOH mm | 1,080 | |||
| Rear Overhang | ROH mm | 1,510 | |||
| Front Tread | AW mm | 1,675 | |||
| Rear Tread | CW mm | 1,650 | |||
