Longer leaf spring is sturdier, capable of handling heavier loads with less deflection for better driving comfort
Wider treads with bigger axle capacity allows installation of various cargo bodies offering greater versatility for any business
80 and 90 amperes alternator provides high voltage for high consumption electrical application
6 speed gearbox ensures suitable gear selection
Best-in-class spacious and quiet cabin with ergonomically designed and placed interior panels positioned for improved visibility makes driving more comfortable with ample room for 3 adults
Wide-angle mirror offers extra visibility of surroundings and minimising blind-spots
Excellent all-round visibility
ASR traction control helps prevent wheelspins and improves vehicle stability when driving on slippery roads
EBD is a function that uses the ABS to distribute braking force between the front and rear wheels to compensate for changes in the load conditions or any shift of load due to acceleration/deceleration, thus preventing premature locking of the rear wheels
*SRS airbag system and seat belt with pretensioner are activated in the event of a frontal collision, mitigating impact to the head and chest *Applicable for driver only
 |
 |
 |
|||||
|---|---|---|---|---|---|---|---|
| MODEL CODE | NPR81UHL | NPR81UKH | NPR75UHL | NPR75UKH | NQR75UKN | NQR75ULN | |
| e-Brochure | |||||||
| Drive System | 4×2 | ||||||
| ENGINE | |||||||

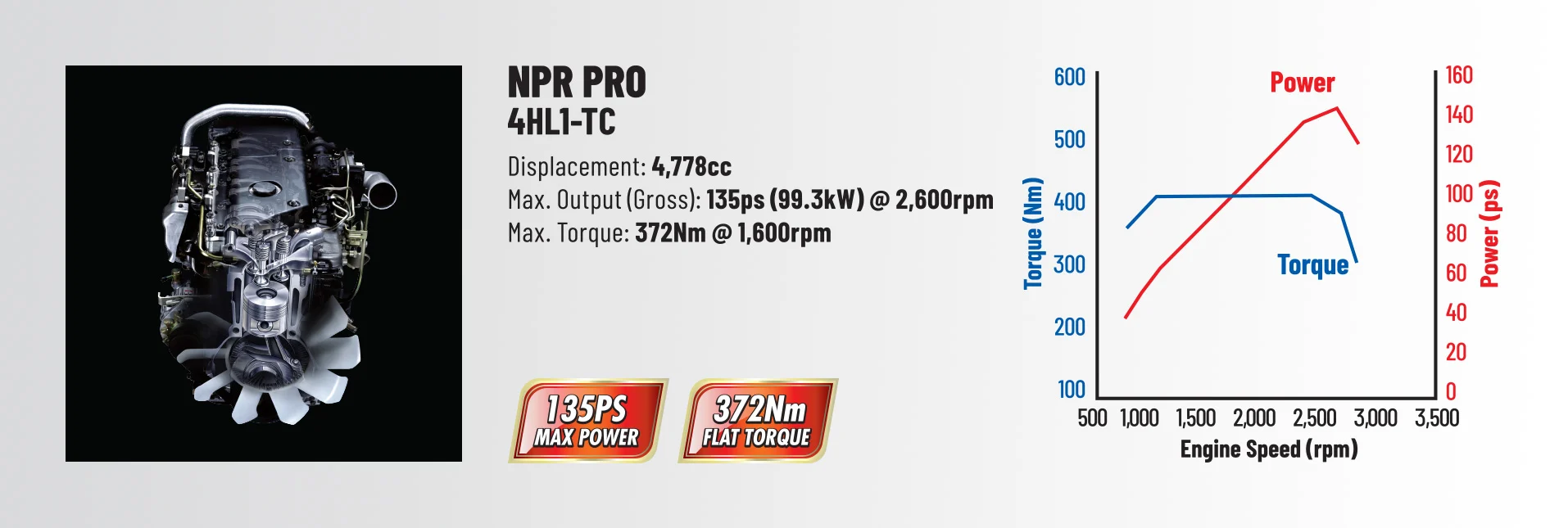

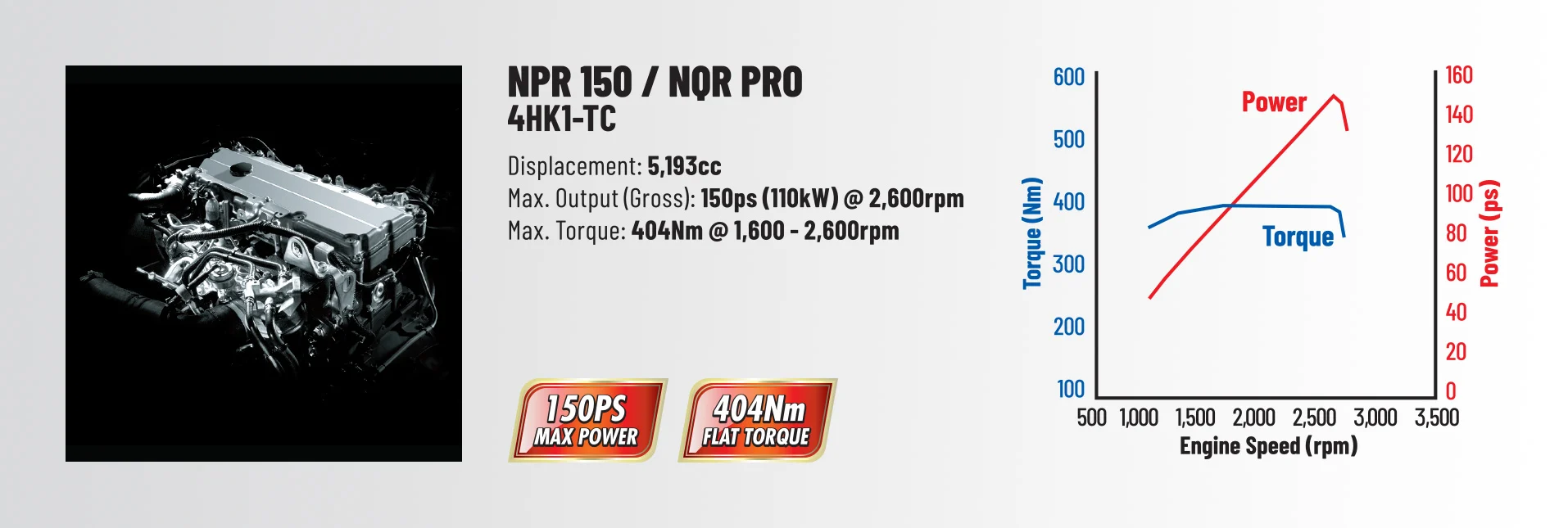

| Model | 4HL1-TC | 4HK1-TC | |||||
| Type | 4-Cylinder In-line, 4-Cycle, Water-Cooled OHC, Turbo with Intercooler | ||||||
| Displacement | cc | 4,778 | 5,193 | ||||
| Maximum Output (Gross) | kW (PS) @ rpm | 99.3 (135) @ 2,600 | 110 (150) @ 2,600 | ||||
| Maximum Torque | Nm (kgfm) @ rpm | 372 (38) @ 1,600 | 404 (41) @ 1,600-2,600 | ||||
| Emission Level | Euro 2 | ||||||
| Fuel System | Common Rail Direct Injection | ||||||
| TRANSMISSION | |||||||
| Model / No. of Speed | MYY-6S / 6-Speed Manual | ||||||
| Gear Ratio | 1st | 5.979 | |||||
| 2nd | 3.434 | ||||||
| 3rd | 1.862 | ||||||
| 4th | 1.297 | ||||||
| 5th | 1.000 | ||||||
| 6th | 0.759 | ||||||
| Reverse | 5.701 | ||||||
| Final | 5.125 | 4.556 | 5.125 | ||||
| WEIGHT & CAPACITIES | |||||||
| Gross Vehicle Weight | kg | 7,500 | 8,500 | ||||
| Curb Weight | kg | 2,415 | 2,545 | 2,455 | 2,490 | 2,705 | 2,790 |
| Front | kg | 1,665 | 1,690 | 1,610 | 1,630 | 1,710 | 1,785 |
| Rear | kg | 750 | 855 | 845 | 860 | 995 | 1,005 |
| Fuel Tank Capacity | l | 100 | |||||
| AXLE | |||||||
| Front | Type | Reverse Elliot, I-Beam | |||||
| Front Axle Capacity (Design) | kg | 3,100 | 3,300 | ||||
| Rear | Type | Banjo, Full Floating | |||||
| Rear Axle Capacity (Design) | kg | 6,600 | |||||
| SUSPENSION SYSTEM | |||||||
| Suspension | Front | Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber | |||||
| Rear | |||||||
| TYRES & WHEELS | |||||||
| Tyres | 215 / 75R17.5 | ||||||
| Wheels | 17.5 x 6.00 – 127 | ||||||
| BRAKES | |||||||
| Service | Type | Hydraulic system with auto adjusting front and rear drum brakes | |||||
| Dual circuit, vacuum assistance and Anti-Lock Brake System (ABS) with Electronic Brake force Distribution (EBD) | |||||||
| Parking Brake Type | Transmission Mounted, Mechanical Operated Internal Expanding | ||||||
| Auxiliary | Exhaust Brake | ||||||
| STEERING | |||||||
| Steering System | Power Assist, Recirculating Ball Type | ||||||
| Min. Turning Radius | m | 6.3 | 7.1 | 6.3 | 7.1 | 7.8 | |
| ELECTRICAL | |||||||
| Battery | 12V x 2 | ||||||
| Alternator | 24V – 80A | 24V – 90A | |||||
| OTHER SAFETY | |||||||
| Supplemental Restraint System (SRS) | Equipped with Pre-tensioner Seatbelt | ||||||
| Anti-Slip Regulator (ASR) | Equipped with on/off function | ||||||
| DIMENSION | |||||||
| Overall Length | mm | 5,985 | 6,635 | 5,985 | 6,635 | 7,355 | |
| Overall Width | mm | 2,125 | |||||
| Overall Height | mm | 2,270 | 2,275 | ||||
| Wheelbase | mm | 3,365 | 3,815 | 3,365 | 3,815 | 4,175 | |
| Front Overhang | mm | 1,110 | |||||
| Rear Overhang | mm | 1,510 | 1,710 | 1,510 | 1,710 | 2,070 | |
| Front Tread | mm | 1,680 | |||||
| Rear Tread | mm | 1,650 | |||||
| Cab to Axle Center | mm | 2,795 | 3,242 | 2,792 | 3,242 | 3,602 | |
