Factory fitted Allison MD3000 automatic transmission and water cooled Automatic Transmission Fluid (ATF) cooler

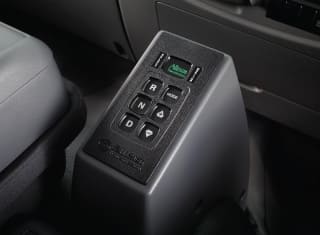

Allison electronic control with digital display
Hot Shift PTO with external speed controller and safety features
Rivetless wider chassis for greater ease of body-building installations
Leaf spring suitable for 19,000 KG GVW
Quick access panel. Designed for convenience, inspecting or replacing clutch fluid, wiper fluid and cabin air filter can be done quickly and safely
Cabin tilting grip assist
Bigger rear axle for higher load capacity (13 ton)
Small relay to avoid damage during flood
Ergonomic instrument panel design with ample storage compartments
More flat area for easy access to bed
New digital meter with enhanced visibility on important information
Air suspension driver’s seat with resting bed and a full-trim cabin interior
Energy absorbing steering wheel
Minimum turning radius
Anti-Lock Braking System (ABS)
Headlight leveling. Preferred headlight beam position can be maintained when truck is loaded and when it has no load
Auto adjuster full air brakes, help protect the environment and save cost
 |
|||||
|---|---|---|---|---|---|

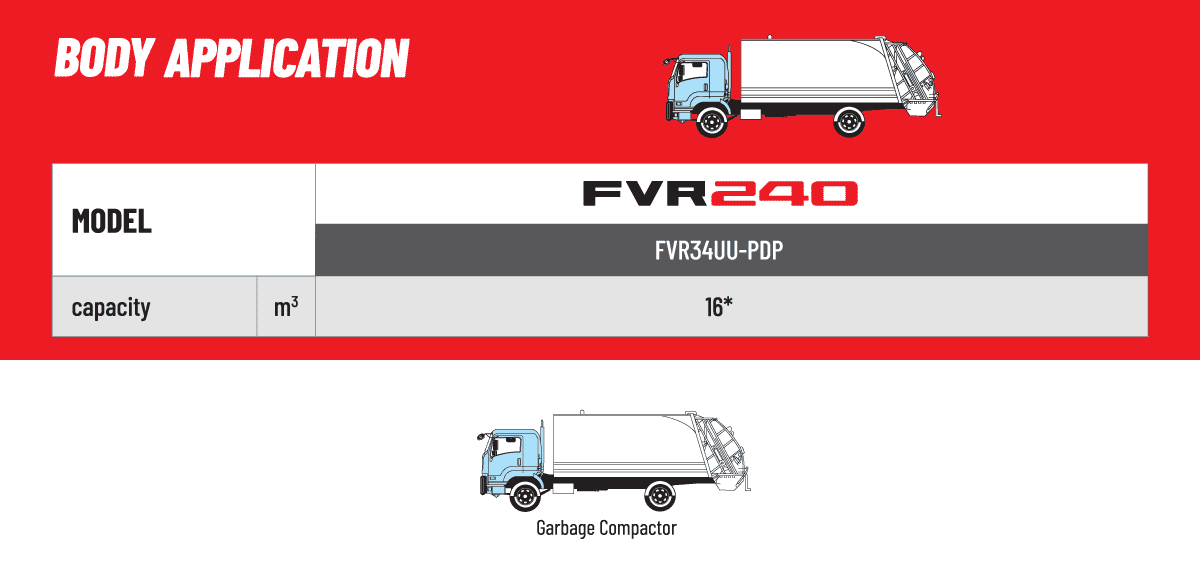

| MODEL CODE | FVR34UU-PDP | ||||
| e-Brochure | |||||
| Drive System | 4×2 | ||||
| ENGINE | |||||

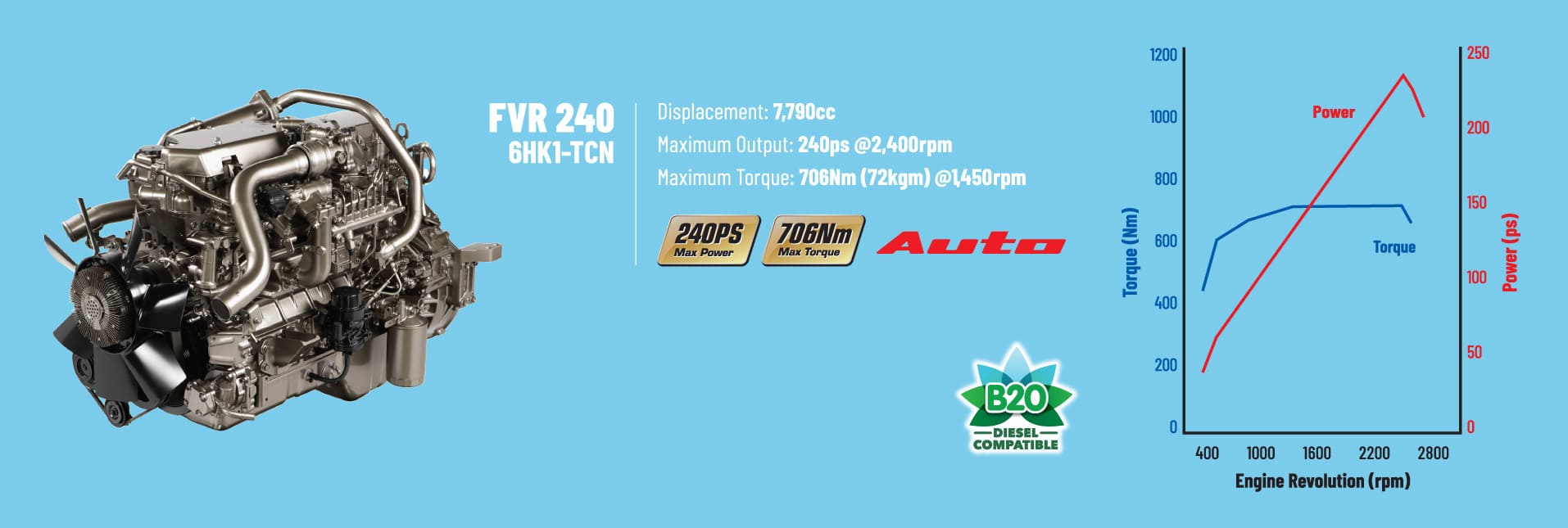

| Model | 6HK1-TCN | ||||
| Type | 6-Cylinder In-line, 4-Cycle, Water-Cooled OHC, Turbo with Intercooler | ||||
| Displacement | cc | 7,790 | |||
| Maximum Output (Gross) | kW (PS) @ rpm | 177 (240)@2,400 | |||
| Maximum Torque | Nm (kgfm) @ rpm | 706 (72)@1,450 | |||
| Emission Level | Euro 2 | ||||
| Fuel System | Common Rail Direct Injection | ||||
| TRANSMISSION | |||||
| Control | Automatic | ||||
| Model / No. of Speed | Allison MD3000 / 6 Speed | ||||
| Gear Ratio | 1st | 3.486 | |||
| 2nd | 1.864 | ||||
| 3rd | 1.409 | ||||
| 4th | 1.000 | ||||
| 5th | 0.749 | ||||
| 6th | 0.652 | ||||
| Reverse | 5.027 | ||||
| Final | 6.883 | ||||
| WEIGHT & CAPACITIES | |||||
| Gross Vehicle Weight | kg | 19,000 | |||
| Fuel Tank Capacity | l | 200 | |||
| AXLE | |||||
| Front | Type | Reverse Elliot, I-Beam | |||
| Front Axle Capacity (Design) | kg | 7,500 | |||
| Rear | Type | Banjo, Full Floating | |||
| Rear Axle Capacity (Design) | kg | 13,000 | |||
| SUSPENSION SYSTEM | |||||
| Suspension | Front | Semi Elliptical Alloy Steel Leaf Spring, Hydraulic Double Acting Telescopic Shock Absorber | |||
| Rear | Semi Elliptical Alloy Steel Leaf Spring | ||||
| TYRES & WHEELS | |||||
| Tyres | 295 / 80R22.5 | ||||
| Wheels | 22.5 x 8.25 (ISO 10 Studs) | ||||
| BRAKES | |||||
| Service | Full Air with Anti Lock Braking System (ABS), Auto Adjuster | ||||
| Parking Brake Type | Spring Acting, Rear Wheel Parking | ||||
| Auxiliary | Exhaust Brake | ||||
| STEERING | |||||
| Steering System | Power Assist, Recirculating Ball Type | ||||
| Min. Turning Radius | m | 8.3 | |||
| ELECTRICAL | |||||
| Battery | 12V x 2 | ||||
| Alternator | 12V – 60A | ||||
| DIMENSION | |||||
| Overall Length | OAL mm | 8,655 | |||
| Overall Width | OAW mm | 2,490 | |||
| Overall Height | OAH mm | 2,900 | |||
| Wheelbase | WB mm | 5,060 | |||
| Front Overhang | FOH mm | 1,255 | |||
| Rear Overhang | ROH mm | 2,340 | |||
| Front Tread | AW mm | 2,065 | |||
| Rear Tread | CW mm | 1,850 | |||
